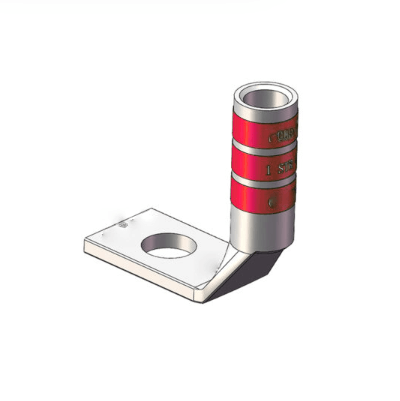

1/0-14FW 90°Copper Lug color code pink AWG1/0# one hole1/4 Tin-plated

Description

The 1/0-14FW is a 90° angled copper lug engineered for secure wire termination in electrical systems.

Constructed with high-conductivity T2 red copper (ensuring low contact resistance, strong corrosion resistance, and stable current flow) and finished with tin plating for enhanced durability, it fits AWG 1/0# wires and features a 1/4″ single hole for easy mounting.

Its pink color coding enables quick size identification during installation, making it ideal for automotive, industrial, and heavy-duty electrical projects needing long-lasting, efficient connections.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	1.45 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	90 Degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
