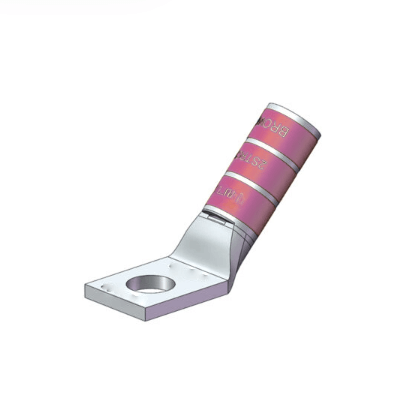

1/0-14HW 45°Copper Lug AWG 1/0# one hole1/4 standard barrel PINK

Description

The ‌1/0-14HW‌ 45° copper lug features:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌AWG 1/0# capacity‌ for high-current applications
  • ‌45° angled design‌ with one 1/4″ hole for versatile mounting
  • ‌Pink color-coding‌ for easy identification in electrical systems
  • ‌Cold-pressed construction‌ ensuring durable, low-resistance joints

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring reliable, color-coded grounding solutions.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.75 in
Barrel length (B)0.88 in
Overall length (L)1.63 in
Inner diameter (ID)0.39 in
Outer diameter (OD)0.52 in

General Specifications

ColourPink
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
