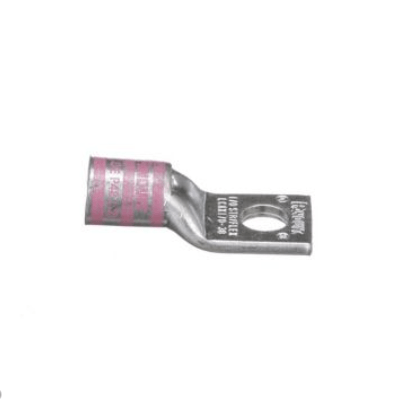

1/0-56W Compression Lug 1/0AWG one hole 5/16″ Straight Type Pink code

Description

Premium T2 Copper Construction‌: Made from 99.95% pure T2 copper for superior conductivity in high-power (3000A+) applications like substations and renewable energy systems.

‌5/16″ Single Hole Design‌: Features a reinforced 56mm barrel with 7.5mm wall thickness for secure compression connections in heavy-duty power distribution.

‌High-Temperature Performance‌: Withstands continuous operation at 200°C, ideal for transformer and switchgear installations.

‌Pink Color Coding‌: Quick visual identification for 1/0AWG size in complex electrical panels.

‌Certified Reliability‌: Meets UL 486A-2025 and IEEE 837 standards with laser-etched specifications for traceability.

Send email to us

Dimensions

Bolt Size	5/16 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	1.96 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
