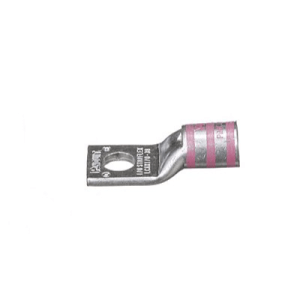

Front view of 1/0 AWG Copper Compression Lug (Straight Tongue) showing 1-hole 3/8 inch stud and standard barrel.
Front view of 1/0 AWG Copper Compression Lug (Straight Tongue) showing 1-hole 3/8 inch stud and standard barrel.
Front view of 1/0 AWG Copper Compression Lug (Straight Tongue) showing 1-hole 3/8 inch stud and standard barrel.

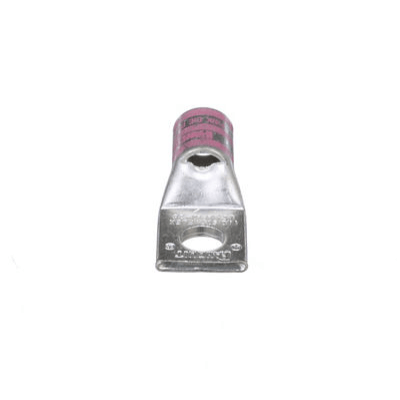

Close-up of the standard barrel entry for 1/0 AWG, highlighting the pink color code and the wire inspection window.
Close-up of the standard barrel entry for 1/0 AWG, highlighting the pink color code and the wire inspection window.

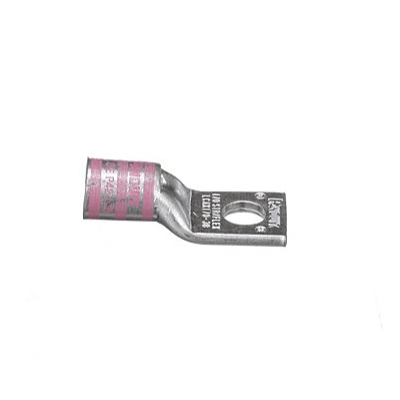

Back view of the tin-plated copper lug emphasizing the thick, durable tongue and the UL/ABS markings.
Back view of the tin-plated copper lug emphasizing the thick, durable tongue and the UL/ABS markings.

1/0 AWG Copper Compression Lug | Straight Tongue, 1-Hole 3/8″ Stud | ABS & UL Certified for Flex Cable

Description

  • Conductor Size: #1/0 AWG Copper (Class G, H, I, K, M, DLO Flex)

  • Configuration: Straight Tongue, 1-Hole Mount

  • Stud Size: 3/8 Inch (9.5mm)

  • Finish: Tin-Plated Copper

  • Crimping ID: Pink Color Code (Panduit P42, Burndy 12)

  • Certifications: UL Listed (486A-486B), CSA Certified, ABS Approved (Marine)

  • Wire Strip Length: 3/4” (19.1 mm)

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.75 in
Barrel length (B)0.88 in
Overall length (L)2.09 in
Inner diameter (ID)0.39 in
Outer diameter (OD)0.52 in

General Specifications

ColourPink
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
