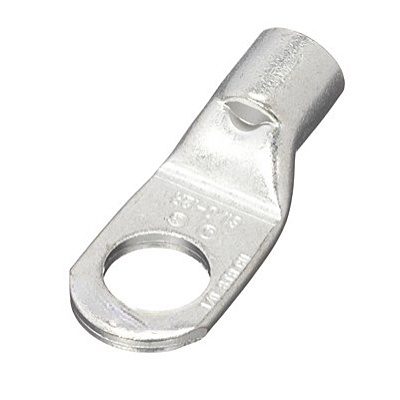

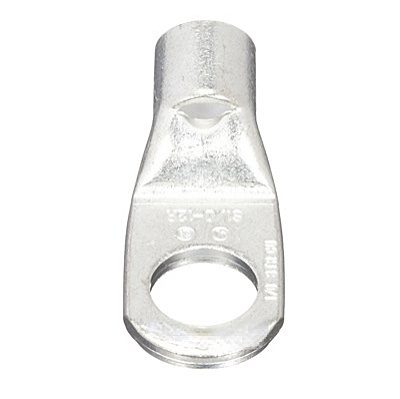

1/0 AWG Copper Ring Lug (Pink) | Short Barrel, 1-Hole x 1/2″ Stud, 35kV Max, Tinned Finish

1/0 AWG T2 Copper Tubular Ring Compression Lug | 1/2″ Stud Hole | Tin-Plated | Inspection Window | Pink Code | UL/CSA Certified

Description

Feature: Tubular ring compression lug manufactured from premium T2 copper with full tin plating, featuring 1/2″ stud hole, integrated inspection window, short barrel with beveled entry, straight round tongue design and pink color coding

Advantage: Inspection window enables visual verification of proper wire insertion, tin plating provides superior corrosion resistance, while short barrel design optimizes space utilization in compact electrical panels with UL/CSA 90°C temperature rating and 35kV voltage capability

Benefit: Ensures error-free installations through visual confirmation, maintains reliable performance in harsh environments, and saves valuable space in crowded electrical enclosures

Data Overview

Parameter	Specification
Material	T2 Copper (Tin Plated)
Conductor Size	1/0 AWG
Stud Hole Size	1/2″ (12.7mm)
Barrel Type	Short Barrel
Barrel Length	0.58″ (14.7mm)
Tongue Type	Round Straight
Inspection Window	Yes
Color Code	Pink
Voltage Rating	35kV
Temperature Rating	90°C (UL/CSA)
Certifications	UL & CSA Listed

Application Scenarios

Compact electrical panels and switchgear
Industrial power distribution systems
Applications requiring visual installation verification
Space-constrained electrical installations

Send email to us

Dimensions

Bolt Size	1/2 in
Stud Hole	5/8 in
Barrel length (L)	1.9 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.47 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Related Products

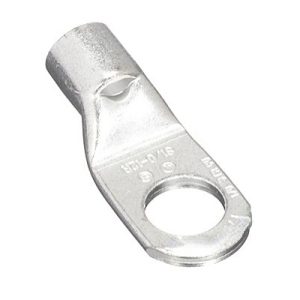

1/0 AWG tubular ring compression lug made from tin-plated T2 copper with 1/2" stud hole, inspection window, short barrel design and pink color coding.
