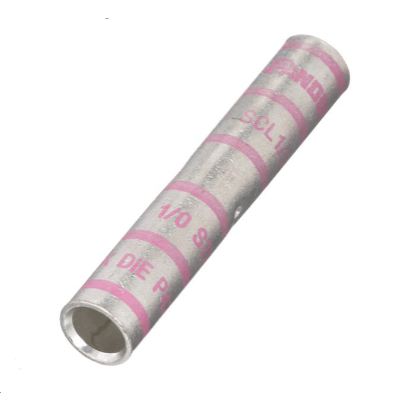

1/0STR Butt Splice Connector | T2 Copper Core | 1/0 AWG | Tin-Plated | Long Barrel | Pink Insulation

Description

This heavy-duty butt splice connector features a T2 copper core with full tin plating, providing exceptional electrical conductivity and corrosion resistance. Engineered for 1/0 AWG wire applications, the long barrel design ensures deep crimp penetration and maximum mechanical strength. The pink insulation offers high dielectric protection and easy circuit identification.

Technical Specifications:

Conductor Material: T2 Copper (Tin-Plated)
Wire Size: 1/0 AWG
Type: Butt Splice Connector
Barrel Design: Long Barrel
Insulation: Pink Nylon/PVC Blend
Plating: Tin (Full Coverage)

Application Scenarios:
Ideal for automotive wiring, marine electronics, industrial control systems, solar power installations, and other high-vibration environments requiring durable, corrosion-resistant wire connections.

Send email to us

Dimensions

Overall length (L)	3.08 in \| 78.2 mm
Inner diameter (ID)	0.39 in \| 9.9 mm
Outer diameter (OD)	0.52 in \| 13.2 mm

General Specifications

Colour Code	Pink
Terminal Material	Copper
Surface	Tin-plated

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
