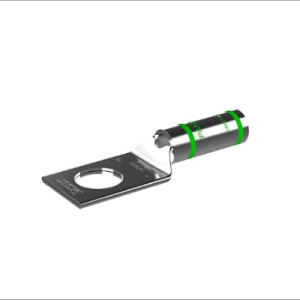

1-10WNT 1AWG Compression Lug Green Printed Straight Type 1 Hole #10 Grounding lug

1-10WNT 1AWG Compression Lug Green Printed Straight Type 1 Hole Grounding lug

Description

Premium T2 Copper Construction‌

Crafted from ‌high-conductivity T2 copper‌ (99.9% purity) to ensure minimal resistance and long-term corrosion resistance in harsh environments.

‌Secure & Compliant Design‌

‌Compression-style‌ termination for 1 AWG wires (42.4mm²) with a ‌green PVC-insulated barrel‌ for clear grounding identification.
Single ‌#10 hole‌ (4.8mm) enables bolt-on attachment to busbars or enclosures, meeting ‌UL 467 Type 1‌ safety standards.

‌Industrial Applications‌

Ideal for electrical panels, substations, and machinery where reliable grounding is critical.

Send email to us

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.50 in
Barrel length (B)	0.88 in
Overall length (L)	2.23 in
Inner diameter (ID)	0.36 in
Outer diameter (OD)	0.46 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
