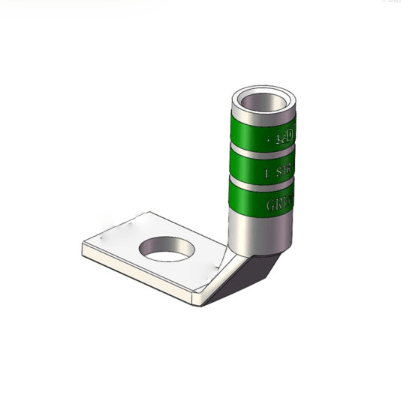

1-14FW 90°Angle AWG1# Grounding Lug Green Printed one hole 1/4 standard barrel

Description

The ‌1-14FW‌ right-angle grounding lug features:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior conductivity
  • ‌90° bend design‌ for space-saving installations in tight enclosures
  • ‌Green printed identification‌ for quick recognition as grounding terminal
  • ‌1/4″ standard barrel‌ for universal compatibility with connectors
  • ‌Cold-pressed construction‌ ensuring durable, low-resistance connections

‌Applications:‌ Ideal for industrial machinery, electrical panels, and equipment requiring reliable grounding solutions.

Send email to us

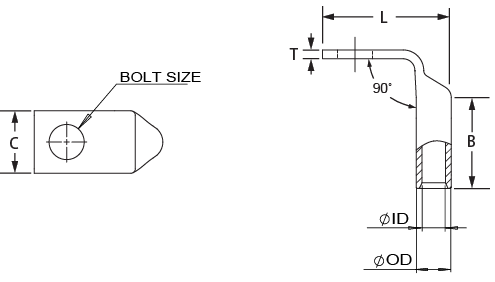

Dimensions

Bolt Size1/4 in
Tang Width (C)0.68 in
Barrel length (B)0.88 in
Tang Thickness(T)0.10
Overall length (L)1.31 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

Colour CodeGreen
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
