You are here: / / / / / 1-56FW 1 AWG 90° Copper Compression Lug, 1-Hole Terminal, 5/16″ ...

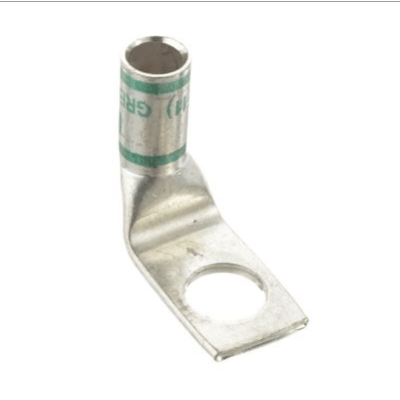

1-56FW 90° Compression Lug | T2 Copper | 1 AWG | 5/16" Stud | Standard Barrel1-56FW 90° Compression Lug | T2 Copper | 1 AWG | 5/16″ Stud | Standard Barrel
1-56FW 90° Compression Lug | T2 Copper | 1 AWG | 5/16" Stud | Standard Barrel
1-56FW 90° Compression Lug | T2 Copper | 1 AWG | 5/16" Stud | Standard Barrel

1-56FW 90° Compression Lug | T2 Copper | 1 AWG | 5/16″ Stud | Standard Barrel

Description

Feature: 90-degree angled tongue design with standard barrel length, manufactured from high-conductivity T2 copper for 5/16″ stud connections
Advantage: Provides optimal balance between space efficiency and crimp surface area, ensuring secure connections in confined spaces
Benefit: Enables efficient panel wiring with maintained mechanical strength, reducing installation time while ensuring long-term reliability

Data Overview

  • Material: T2 Copper

  • Cable Range: 1 AWG

  • Stud Size: 5/16″

  • Tongue Angle: 90°

  • Barrel Type: Standard

  • Mounting: Single Hole

  • Standards: UL 486A, RoHS compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical enclosures, power distribution equipment, and applications requiring reliable right-angle connections with standard crimp requirements.

Send email to us

Dimensions

Bolt Size5/16 in
Tang Width (C)0.68 in
Barrel length (B)0.88 in
Overall length (L)1.44 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeStandard
Tongue Angle90 Degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
