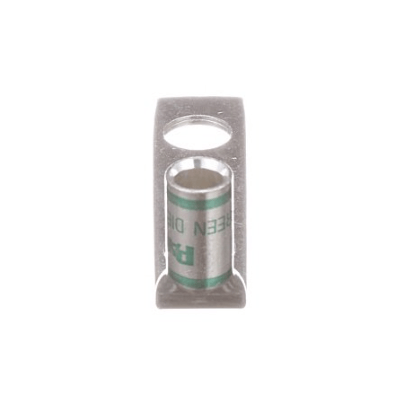

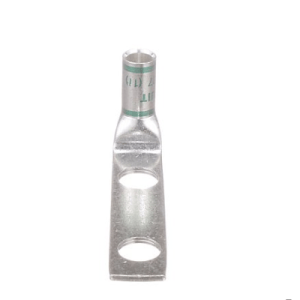

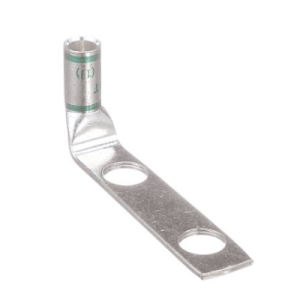

1 AWG Copper Compression Lug | 2-Hole 90° Tongue, 1/2″ Stud | High-Conductivity Power Connector

Description

  • Wire Size: #1 AWG Copper Conductor

  • Configuration: 2-Hole Mount, 90° Bent Tongue

  • Stud Specification: 1/2″ Stud Size with 1-3/4″ Hole Spacing

  • Material: High-Purity T2 Copper with Tin-Plated Finish

  • Features: Beveled Barrel Entry & Inspection Window

  • Application: Ideal for confined panels requiring vibration-proof connections

Send email to us

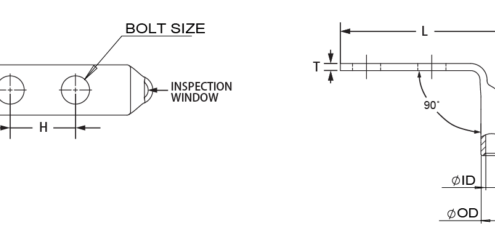

Dimensions

Bolt Size1/2 in
Hole Spacing (H)1-3/4 in
Tang Width (C)0.83 in
Barrel length (B)0.88 in
Overall length (L)3.87 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
