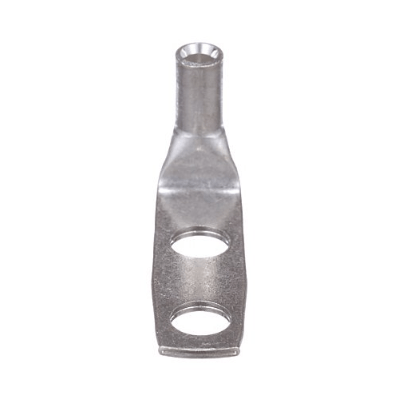

Front view of 10 AWG Copper Compression Lug with 90 degree tongue and 2-hole 1/4 inch stud configuration.
Front view of 10 AWG Copper Compression Lug with 90 degree tongue and 2-hole 1/4 inch stud configuration.
Front view of 10 AWG Copper Compression Lug with 90 degree tongue and 2-hole 1/4 inch stud configuration.

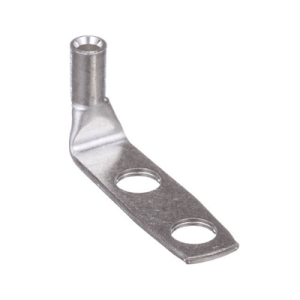

Back view of the tin-plated copper lug showing the flat mounting surface and 5/8 inch hole spacing.
Back view of the tin-plated copper lug showing the flat mounting surface and 5/8 inch hole spacing.

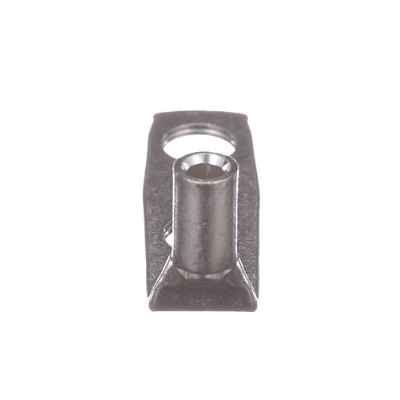

Close-up of the standard barrel showing the beveled wire entry and the inspection window for conductor insertion verification.
Close-up of the standard barrel showing the beveled wire entry and the inspection window for conductor insertion verification.

10 AWG Copper Compression Lug | 90° Angle, 2-Hole 1/4″ Stud | UL Listed & NEBS Level 3

Description

  • Conductor Range: #14 AWG to #10 AWG Copper

  • Angle & Holes: 90° Bent Tongue, 2-Hole Mount

  • Stud/Spacing: 1/4 Inch Studs (6.4mm) with 5/8 Inch Spacing (16mm)

  • Material: Tin-Plated Copper with Inspection Window

  • Certifications: UL Listed (486A-486B), CSA Certified, NEBS Level 3

  • Rating: Maximum Voltage 35 kV, Max Temperature 90C

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)5/8 in
Tang Width (C)0.4 in
Barrel length (B)0.38 in
Overall length (L)1.56 in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

Colour Codeyellow
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
