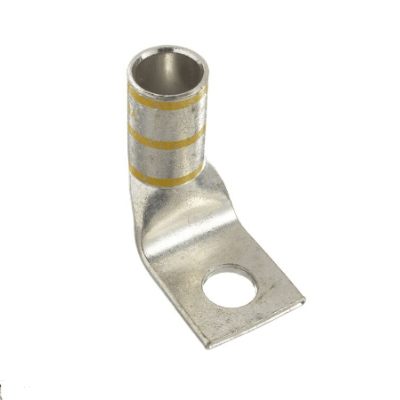

1410-14FW 90° T2 Copper Compression Lug | 14-10 AWG | 1/4″ Bolt Hole | Standard Barrel

Description

  • Feature : Precision-formed 90-degree universal lug manufactured from high-conductivity T2 copper, compatible with 14-10 AWG cable range and 1/4″ bolt hole

  • Advantage : Provides excellent electrical conductivity and space-saving right-angle design while accommodating multiple wire sizes for installation flexibility

  • Benefit : Reduces inventory needs by covering multiple wire sizes, saves valuable panel space, and ensures reliable power transmission in compact electrical applications

Data Overview

  • Material: T2 Copper

  • Cable Range: 14-10 AWG

  • Bolt Hole: 1/4″

  • Mounting: Single Hole

  • Tongue Angle: 90°

  • Barrel Type: Standard

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution boxes, automation systems, and applications requiring versatile, space-efficient connections for multiple wire sizes.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.41 in
Barrel length (B)0.69 in
Overall length (L)0.94in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue Angle90-degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
