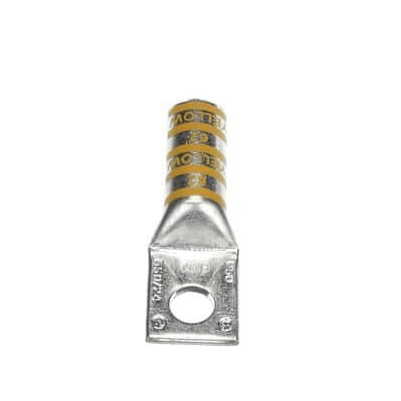

1410-14W compression lug color yellow code one helo 1/4“ standard barrel

Description

‌Premium Material‌:
Engineered with high-purity ‌T2 red copper‌ for optimal conductivity (99.9% purity) and oxidation resistance, compliant with ASTM B187 and MIL-DTL-3933 standards.
‌Precision Design‌:

‌Color-coded yellow barrel‌ (HELO 1/4″) for instant size identification (10-14 AWG range)
‌Standard 1/4″ barrel opening‌ with serrated interior for secure stud connections

‌Certified Performance‌:

‌UL 486A/B & CSA‌ certified for industrial power distribution
Cold-welded compression technology prevents loosening under vibration

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.45 in
Barrel length (B)	0.39 in
Overall length (L)	1.13 in
Inner diameter (ID)	0.13 in
Outer diameter (OD)	0.22 in

General Specifications

Colour	Yellow
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
