2/0-1458H/W 45°Copper Lug AWG 2/0# two hole 1/4 hole spacing 5/8 black

Description

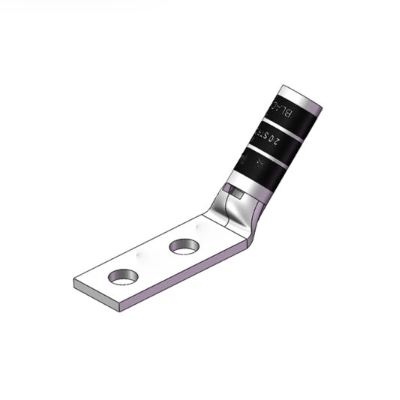

The ‌2/0-1458H/W‌ 45° copper lug is engineered with:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌AWG 2/0# capacity‌ for high-current applications
  • ‌45° angled design‌ with two 1/4″ spaced holes for versatile and secure mounting
  • ‌Black color-coding‌ for easy identification in electrical systems
  • ‌Cold-pressed construction‌ ensuring durable, low-resistance joints

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring reliable, color-coded grounding solutions.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.83 in
Barrel length (B)0.94 in
Overall length (L)2.38 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
