2/0-14H/W 45°Degree Color Coded Angle Copper Lugs one hole 1/4 AWG2/0#

Description

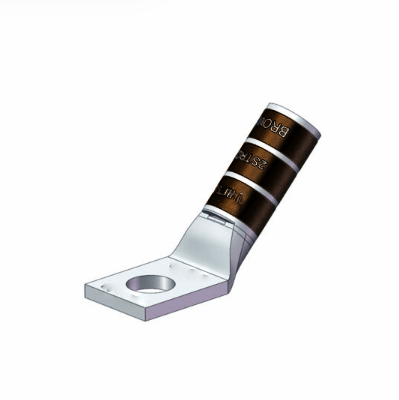

The 2/0-14H/W is a 45° angled copper lug designed for secure wire termination in electrical systems.

Constructed with high-conductivity T2 red copper (ensuring low contact resistance, strong corrosion resistance, and stable current flow), it fits AWG 2/0# wires, features a 1/4″ single hole for easy mounting, and comes with color coding for quick size identification.

Ideal for automotive, industrial, and heavy-duty electrical setups needing durable, space-saving angle connections.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.83 in
Barrel length (B)	0.94 in
Overall length (L)	1.77 in
Inner diameter (ID)	0.45 in
Outer diameter (OD)	0.56 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
