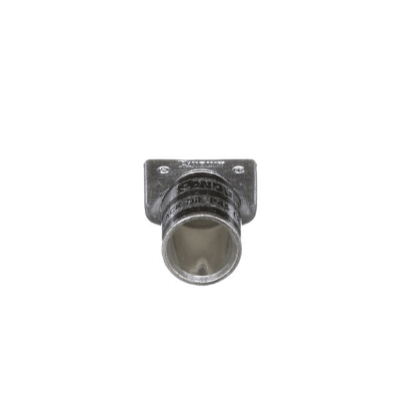

Close-up of the standard barrel entry for 2/0 AWG, highlighting the black color code and the $7/8$ inch wire strip length mark.
Close-up of the standard barrel entry for 2/0 AWG, highlighting the black color code and the $7/8$ inch wire strip length mark.

2/0 AWG Copper Compression Lug | Straight, 1-Hole 5/16″ Stud | ABS Marine & UL Certified

Description

  • Conductor Size: #2/0 AWG Copper (Class G, H, I, K, M, DLO Flex)

  • Configuration: Straight Tongue, 1-Hole Mount

  • Stud Size: $5/16$ Inch (7.9mm)

  • Finish: Tin-Plated Copper

  • Crimping ID: Black Color Code (Panduit P45, Burndy 13)

  • Certifications: UL Listed, CSA Certified, ABS Approved (Marine)

  • Packaging: Pack of 10 (PK10)

Send email to us

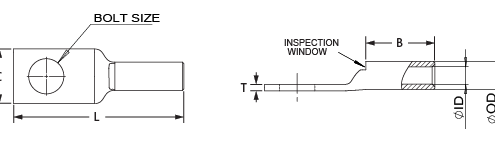

Dimensions

Bolt Size5/16 in
Tang Width (C)0.62 in
Barrel length (B)0.94 in
Overall length (L)2.06 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
