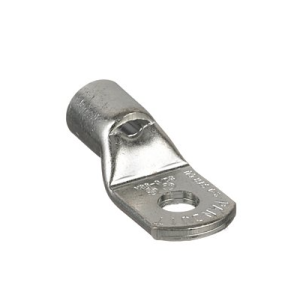

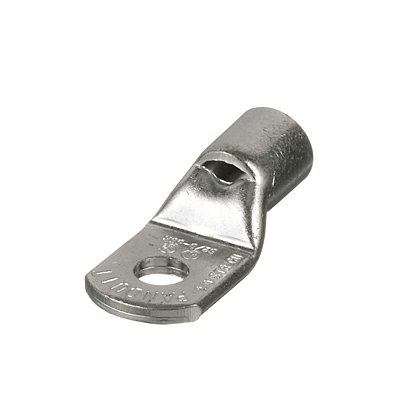

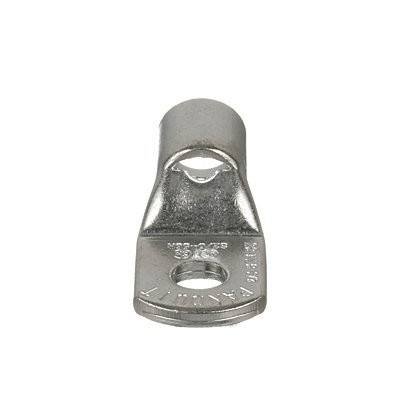

2/0 AWG T2 Copper Tubular Ring Lug | 5/16″ Stud Hole | Tin-Plated | Inspection Window | Short Barrel

Description

SpecificationMetric
Conductor Size2/0 AWG
Stud Hole Size5/16″ (7.9mm)
Barrel TypeShort
Barrel Length0.66″ (16.8mm)
Tongue DesignRound Straight
Inspection WindowYes
MaterialT2 Copper (Tin Plated)
Overall Length1.9″ (48.3mm)
Product Detail

Feature: Precision-engineered tubular ring compression lug manufactured from high-conductivity T2 copper with full tin plating, featuring 5/16″ stud hole, integrated inspection window, short barrel with beveled entry, and straight round tongue design

Advantage: Transparent inspection window allows visual confirmation of proper wire seating, while tin plating provides excellent corrosion resistance and the compact short barrel design maximizes space efficiency in crowded electrical panels

Benefit: Ensures reliable connections through visual installation verification, extends service life in harsh environments, and enables efficient use of limited panel space

Send email to us

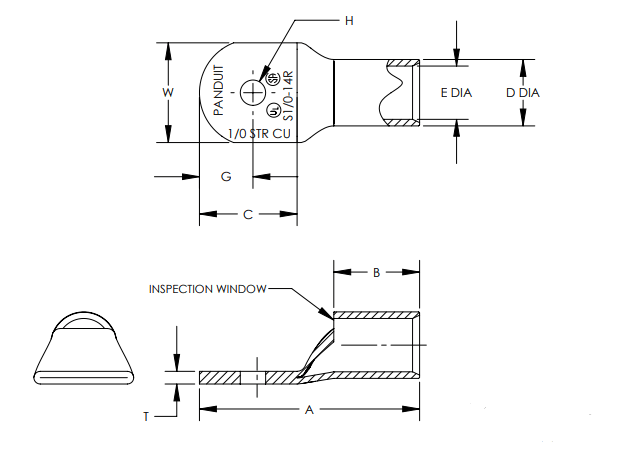

Dimensions

Stud Hole Size (In.)5/16
Barrel Length (In.)0.66
Tongue Width (In.)0.85
OTongue Thickness (In.)0.13
Overall Length (In.)1.9

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
