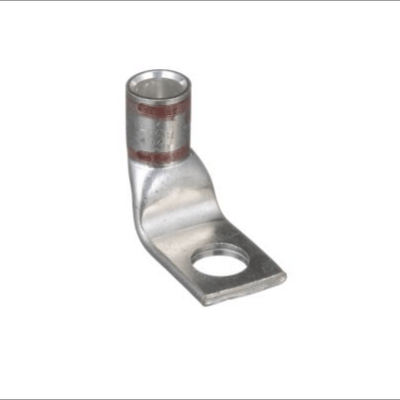

Close-up of a 2-38FW 90-degree angled compression lug, made from high-conductivity T2 copper, for connecting a 2 AWG cable to a 3/8" stud.
Close-up of a 2-38FW 90-degree angled compression lug, made from high-conductivity T2 copper, for connecting a 2 AWG cable to a 3/8" stud.
Close-up of a 2-38FW 90-degree angled compression lug, made from high-conductivity T2 copper, for connecting a 2 AWG cable to a 3/8" stud.

2-38FW 2 AWG Copper 90 Degree Lug – 1 Hole 3/8″ Bolt Ring Terminal Standard Barrel

Description

  • Feature : Precision-engineered with a 90-degree tongue and standard barrel from high-conductivity T2 copper, designed for a 3/8″ stud and single-hole mounting.

  • Advantage : The T2 copper ensures maximum electrical conductivity and corrosion resistance, while the right-angle design saves space in dense panels. The standard barrel provides a large surface area for a secure, gas-tight crimp.

  • Benefit : Delivers reliable, low-resistance power transmission, reduces installation time in confined spaces, and ensures long-term connection durability, minimizing maintenance needs.

Data Overview

  • Material: T2 Copper

  • Cable Range: 2 AWG

  • Stud Size: 3/8″

  • Tongue Angle: 90°

  • Barrel Type: Standard

  • Mounting: 1 Hole

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, power distribution boards, renewable energy systems, and any application requiring a reliable, right-angle, high-current connection.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.61 in
Barrel length (B)0.88 in
Overall length (L)1.44 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle90 Degree Lug
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
