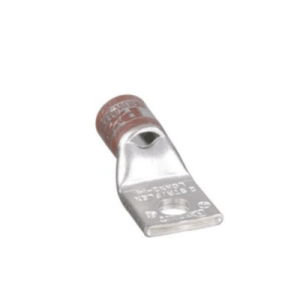

2-56W Copper 1 Hole 5/16” Straight Tongue Compression Lug 2AWG

Description

Superior Conductivity‌

Manufactured from high-grade T2 copper (99.9% pure) for excellent electrical conductivity and corrosion resistance
Ideal for harsh environments and high-current applications

‌Precision Engineering‌

Straight tongue design with 5/16″ (8mm) mounting hole for versatile installations
Compression-style termination ensures permanent connection for 2AWG wires (33.6mm²)
Smooth bore design prevents wire damage during crimping

‌Certified Reliability‌

Meets UL 467 standards for grounding safety
Suitable for industrial electrical panels, transformers, and heavy equipment

‌Applications‌

Power distribution systems
Equipment grounding
Renewable energy installations
Industrial machinery connections

Send email to us

Dimensions

Bolt Size	5/16 in
Tang Width (C)	0.61 in
Barrel length (B)	0.88 in
Overall length (L)	1.93 in
Inner diameter (ID)	0.31 in
Outer diameter (OD)	0.42 in

General Specifications

Colour	Brown
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
