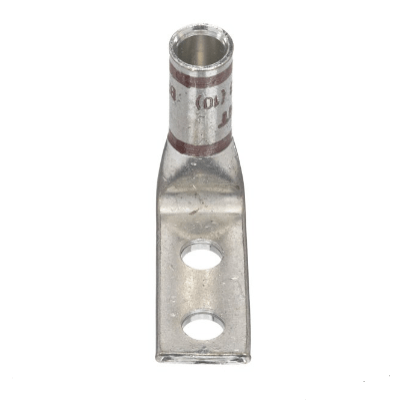

Front side view of D2-1401FW 2 AWG copper compression lug showing 90 degree bent tongue and dual 1/4 inch mounting holes.
Front side view of D2-1401FW 2 AWG copper compression lug showing 90 degree bent tongue and dual 1/4 inch mounting holes.
Front side view of D2-1401FW 2 AWG copper compression lug showing 90 degree bent tongue and dual 1/4 inch mounting holes.
Back view of 90 degree copper lug displaying flat tin-plated mounting surface and 1 inch hole spacing.
Back view of 90 degree copper lug displaying flat tin-plated mounting surface and 1 inch hole spacing.

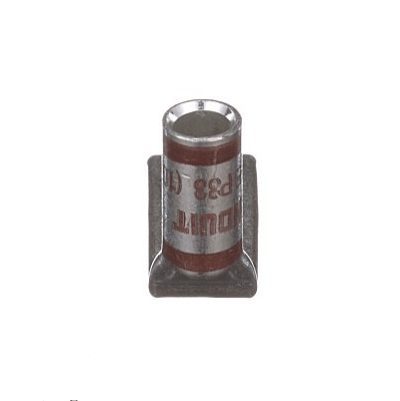

Close-up detail of standard barrel cable entry for 2 AWG wire with inspection window and beveled edge.
Close-up detail of standard barrel cable entry for 2 AWG wire with inspection window and beveled edge.

2 AWG Copper Compression Lug | 90° Tongue, 2-Hole (1/4″ Stud) | D2-1401FW Electrical Connector

Description

  • Conductor Size: #2 AWG Stranded Copper

  • Configuration: 90° Bent Tongue (Right Angle)

  • Mounting: 2-Hole Pattern

  • Stud Specifications: 1/4″ Stud Size, 1″ Hole Spacing

  • Material: High-Conductivity Copper (Tin-Plated)

  • Barrel Style: Standard Length with Inspection Window

  • Application: Tight clearance panels and vibration-prone environments

Send email to us

Dimensions

Bolt Size14 in
Hole Spacing (H)1 in
Tang Width (C)0.60 in
Barrel length (B)0.88 in
Overall length (L)2.24 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
