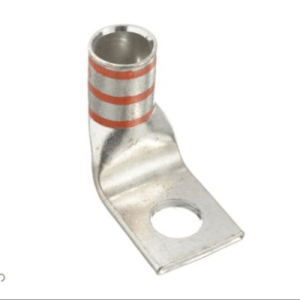

3/0-12FW 3/0AWG Copper 1 Hole 90. Tongue Compression Lug Orange Short Barrel

3/0-12FW 90° Short Barrel Compression Lug | T2 Copper | 3/0 AWG | Orange

Description

Feature: 90-degree short barrel design manufactured from T2 copper with single-hole mounting and orange insulation
Advantage: Enables efficient right-angle connections in tight spaces while providing superior conductivity in compact installations
Benefit: Optimizes space utilization in electrical panels and reduces installation time in dense wiring environments

Data Overview

Material: T2 Copper
Cable Range: 3/0 AWG
Mounting: Single Hole
Tongue Angle: 90°
Barrel Type: Short Barrel
Insulation Color: Orange
Standards: UL 486A, RoHS
Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, compact electrical cabinets, power distribution systems, and space-constrained applications requiring reliable high-current connections.

Send email to us

Dimensions

Bolt Size	1/2 in
Tang Width (C)	0.91 in
Barrel length (B)	1.00 in
Overall length (L)	1.98 in
Inner diameter (ID)	0.51 in
Outer diameter (OD)	0.63 in

General Specifications

Colour	Orange
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
