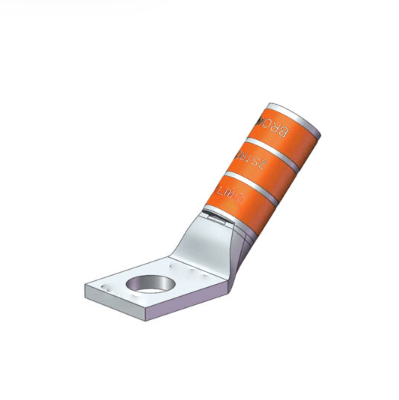

3/0-56HW 45°Copper Lug AWG 3/0# one hole 5/16 Orange color printed terminal

Description

High-conductivity ‌T2 copper‌ lug with ‌45° offset design‌ for seamless cable-to-busbar connections in tight spaces. Features:

‌5/16″ single-hole‌ mounting (ANSI/NEMA compliant)
‌Corrosion-resistant‌ orange color-coding for quick identification
‌Cold-forged construction‌ for superior mechanical strength vs. stamped alternatives
‌Ideal for industrial switchgear, solar combiner boxes, and marine power systems‌

Optimized for durability in high-vibration environments (-40°C to 105°C operational range). ‌UL 486A-listed‌ for 600V applications.

Send email to us

Dimensions

Bolt Size	5/16 in
Tang Width (C)	0.91 in
Barrel length (B)	1.00 in
Overall length (L)	1.90 in
Inner diameter (ID)	0.51 in
Outer diameter (OD)	0.63 in

General Specifications

Colour	Orange
Material	Copper
Tongue Type	Standard
Tongue Angle	45 Angle
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
