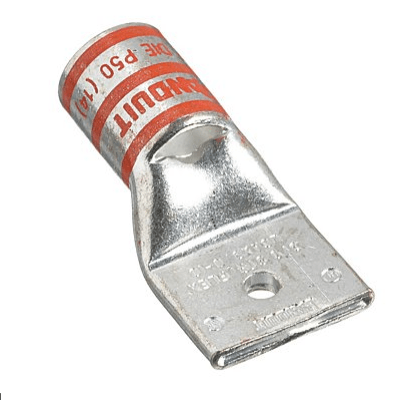

Front view of 3/0 AWG Copper Compression Lug (Straight Tongue) showing the large barrel and 1-hole #10 stud.
Front view of 3/0 AWG Copper Compression Lug (Straight Tongue) showing the large barrel and 1-hole #10 stud.
Front view of 3/0 AWG Copper Compression Lug (Straight Tongue) showing the large barrel and 1-hole #10 stud.

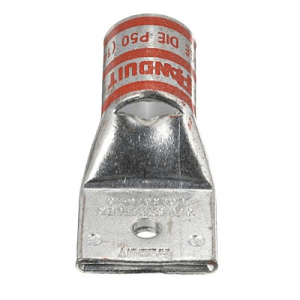

Close-up of the standard barrel entry for 3/0 AWG, highlighting the Orange color code and the 1 inch wire strip length guide.
Close-up of the standard barrel entry for 3/0 AWG, highlighting the Orange color code and the 1 inch wire strip length guide.

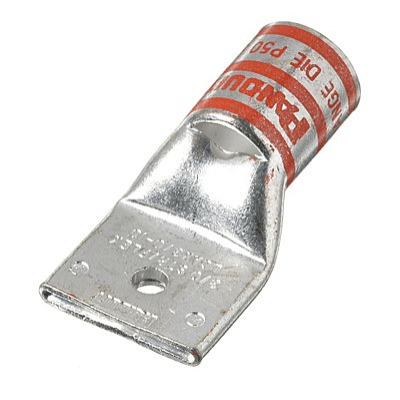

Back view of the tin-plated copper lug emphasizing the thick, durable tongue and mounting surface thickness.
Back view of the tin-plated copper lug emphasizing the thick, durable tongue and mounting surface thickness.

3/0 AWG Copper Compression Lug | Straight, 1-Hole #10 Stud | High-Density Power Terminal, ABS & UL Certified

Description

  • Conductor Size: #3/0 AWG Copper (Rated for DLO, Class M Flex)

  • Configuration: Straight Tongue, 1-Hole Mount

  • Stud Size: #10 Stud (4.8mm)

  • Crimping ID: Orange Color Code (Panduit P50, Burndy 14)

  • Finish: Tin-Plated Copper with Inspection Window

  • Certifications: UL Listed, CSA Certified, ABS Approved (Marine/Industrial)

  • Packaging: Pack of 10 (PKG10)

Send email to us

Dimensions

Bolt Size#10 in
Tang Width (C)0.62 in
Barrel length (B)0.94 in
Overall length (L)2.62 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourOrager
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
