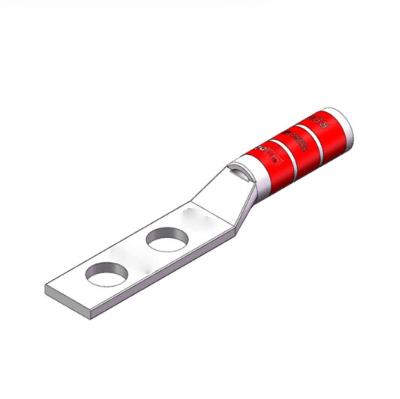

350-1201W KCM Copper Lug AWG 350KCM# two hole 1/2 hole spacing 1 color printed terminal

Description

Ultra-high-capacity ‌forged T2 copper‌ terminal featuring:

  • ‌Military-grade T2 copper alloy‌ (99.97% purity) with 103% IACS conductivity for 400A continuous current
  • ‌Dual 1/2″ hole spacing‌ design withstands 25kN mechanical stress in substation busbar connections
  • ‌Electrolytic nickel plating‌ exceeds ASTM B456 Level III for corrosive environments (-55°C to 150°C)
  • ‌Laser-printed color coding‌ meets ANSI/NEMA Z535.1 safety identification standards

‌Certified for‌: Mining equipment, wind turbine grounding, and data center PDUs.

Send email to us

Dimensions

Bolt Size0.51 in
Hole Spacing (H)1.00 in
Tang Width (C)1.28 in
Barrel length (B)2.00 in
Overall length (L)4.87 in |
Inner diameter (ID)0.72 in
Outer diameter(OD)0.89 in

General Specifications

Colour CodeRed
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
