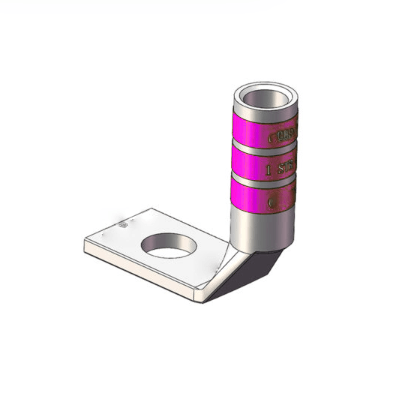

4/0-14FW 90 Degree Copper Lug 4/0 AWG 1/4″ Purple Color-Coded lugs

Description

‌Premium T2 Copper Construction‌: The 4/0-14FW lugs feature high-purity T2 copper, ensuring superior conductivity and corrosion resistance for heavy-duty electrical applications.

‌Precision 90° Tongue Design‌: Engineered for 4/0 AWG cables, this single-hole lug (1/4″) provides a secure, low-resistance connection with its 90° tongue angle, ideal for tight terminal installations.

‌Color-Coded for Easy Identification‌: The purple color-coding ensures quick and accurate identification in complex electrical systems.

‌Versatile Applications‌: Designed for automotive, marine, and industrial battery systems, these cold-pressed lugs deliver consistent performance under extreme conditions.

‌Certified Quality‌: Compliant with industry standards for power transmission efficiency, making it a trusted choice for professional electrical installations.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	1.02 in
Barrel length (B)	1.06 in
Overall length (L)	1.75 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	90 Degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
