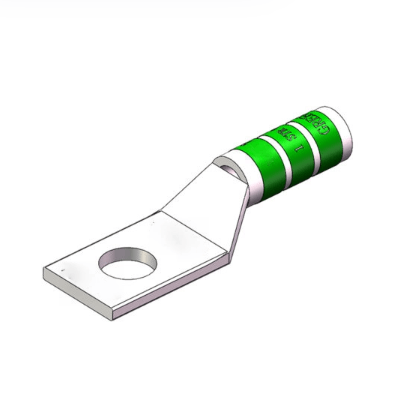

4/0-14HW 45°Copper Lug AWG 4/0 one hole 1/4 standard barrel color printed terminal

Description

High-conductivity ‌T2 copper‌ lug with ‌45° offset design‌ for seamless cable-to-busbar connections in tight spaces. Features:

  • ‌1/4″ single-hole‌ mounting (ANSI/NEMA compliant)
  • ‌Corrosion-resistant‌ color-coding for quick identification
  • ‌Cold-forged construction‌ for superior mechanical strength
  • ‌Ideal for industrial switchgear, solar inverters, and heavy-duty electrical systems‌

Optimized for durability in high-vibration environments (-40°C to 105°C operational range). ‌UL 486A-listed‌ for 600V applications.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)1.02 in
Barrel length (B)1.06 in
Overall length (L)1.96 in
Inner diameter (ID)0.56 in
Outer diameter (OD)0.70 in

General Specifications

ColourPurple
MaterialCopper
Tongue TypeStandard
Tongue Angle45 Angle
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
