4/0-56HW 45° Compression Lug | T2 Copper | 4/0 AWG | 5/16" Stud | Single Hole | Pueple
4/0-56HW 45° Compression Lug | T2 Copper | 4/0 AWG | 5/16" Stud | Single Hole | Pueple
4/0-56HW 45° Compression Lug | T2 Copper | 4/0 AWG | 5/16" Stud | Single Hole | Pueple

GPH1.5-3 GPH Copper Tube Terminal Tin-Plated without inspection window

Description

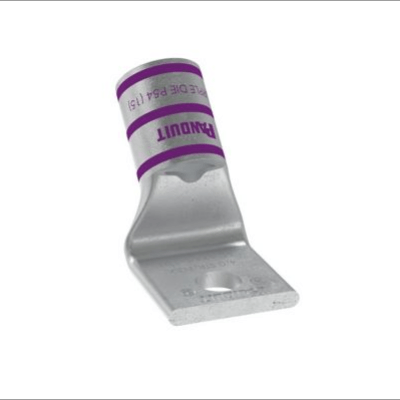

Heavy-duty 45-degree angled compression lug for 4/0 AWG cables, featuring T2 copper construction and 5/16″ stud connection for high-current applications.

Product Detail
Feature: Precision-formed 45-degree tongue design from T2 copper with single-hole mounting for 5/16″ stud
Advantage: Provides optimal conductivity and heat dissipation while enabling installation in confined spaces
Benefit: Ensures reliable power transmission in high-amperage circuits and reduces installation time in space-constrained panels

Data Overview

  • Material: T2 Copper

  • Cable Range: 4/0 AWG

  • Stud Size: 5/16″

  • Mounting: Single Hole

  • Tongue Angle: 45°

  • Finish: Bare Copper

  • Standards: UL 486A, RoHS

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, renewable energy systems, electrical switchgear, and heavy equipment requiring angled, high-current connections.

Send email to us

Dimensions

Bolt Size5/16 in
Tang Width (C)1.02 in
Barrel length (B)1.06 in
Overall length (L)1.98 in
Inner diameter (ID)0.56 in
Outer diameter (OD)0.70 in

General Specifications

ColourPurple
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
