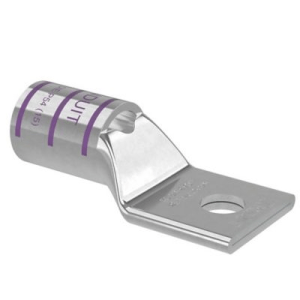

4/0-56W-4/0 AWG Compression Lug One hole 5/16″ Stud Size Code Purple

Description

remium T2 Copper Construction
Engineered with pure (oxygen-free copper) for maximum conductivity and corrosion resistance, ensuring optimal electrical performance in demanding environments.

Precision Engineering
• 4/0 AWG to 250 kcmil wire range
• 5/16″ single-hole stud size (color-coded purple)
• Heavy-duty compression design for vibration-resistant connections

Industrial Applications
Ideal for power distribution, renewable energy systems, and industrial equipment where high-current reliability is critical. UL-listed and meets IEEE standards.

Send email to us

Dimensions

Bolt Size	5/16 in
Tang Width (C)	1.02 in
Barrel length (B)	0.88 in
Overall length (L)	2.08 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
