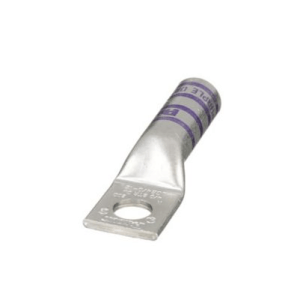

L4/0-12/W 4/0 AWG compression lug with long barrel design, made from T2 copper with 1/2" stud hole and purple insulation coding.
L4/0-12/W 4/0 AWG compression lug with long barrel design, made from T2 copper with 1/2" stud hole and purple insulation coding.
L4/0-12/W 4/0 AWG compression lug with long barrel design, made from T2 copper with 1/2" stud hole and purple insulation coding.

L4/0-12/W 4/0 AWG T2 Copper Compression Lug | 1/2″ Stud | Long Barrel | Purple Code | High Conductivity

Description

  • Feature : Long barrel compression lug manufactured from high-conductivity T2 copper, designed for 4/0 AWG cables with 1/2″ stud hole and purple insulation coding

  • Advantage : Extended barrel provides maximum crimp surface area for optimal conductivity while T2 copper construction ensures superior current carrying capacity and mechanical durability

  • Benefit : Ensures reliable power transmission in high-current applications, reduces installation time with secure crimping, and provides clear circuit identification through purple coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 4/0 AWG

  • Stud Size: 1/2″

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Color Code: Purple

  • Conductivity: ≥98% IACS

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical substations, renewable energy systems, and heavy-duty applications requiring reliable high-current connections with enhanced crimp performance.

Send email to us

Dimensions

Bolt Size1/2 in
Tang Width (C)1.02 in
Barrel length (B)1.62 in
Overall length (L)3.23 in
Inner diameter (ID)0.56 in
Outer diameter (OD)0.70 in

General Specifications

ColourPurple
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
