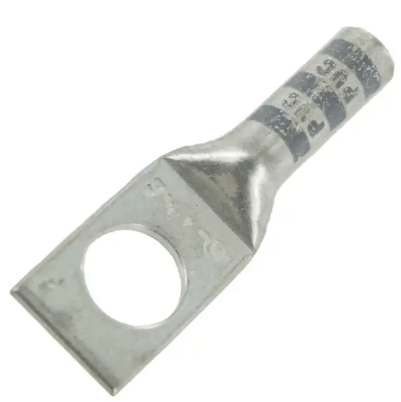

4-10WNT BARREL COPPER LUG CODE GRAY 1HOLE #10 4AWG Compression Lug

Description

‌Premium T2 Copper Construction‌

Made from ‌high-purity T2 copper (99.9%)‌ for superior conductivity and corrosion resistance.
Ensures low electrical resistance and long-term reliability in demanding environments.

‌Single-Hole Compression Design‌

Engineered for ‌4AWG (#10)‌ wire sizes, providing a secure and gas-tight connection.
Compression design prevents wire slippage and ensures stable performance under vibration.

‌Certified Performance‌

Compliant with ‌UL 467‌ and ‌IEC 61238‌ standards for safety and reliability.
Ideal for automotive wiring, industrial equipment, and electrical control panels.

‌Applications‌

Automotive electrical systems
Industrial machinery connections
Control panel wiring
Renewable energy installations

Send email to us

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.40 in
Barrel length (B)	0.81 in
Overall length (L)	1.73 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38 in

General Specifications

Colour	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	Whout inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
