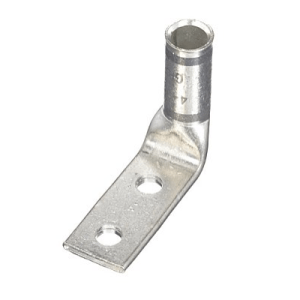

Front view of 4 AWG copper compression lug D4-1058FW showing 90 degree bent tongue and two #10 mounting holes.
Front view of 4 AWG copper compression lug D4-1058FW showing 90 degree bent tongue and two #10 mounting holes.
Front view of 4 AWG copper compression lug D4-1058FW showing 90 degree bent tongue and two #10 mounting holes.

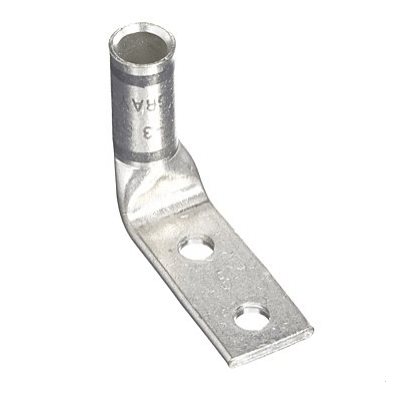

Back view of 90 degree 4 AWG lug showing flat mounting surface and 5/8 inch hole spacing.
Back view of 90 degree 4 AWG lug showing flat mounting surface and 5/8 inch hole spacing.

4 AWG Copper Compression Lug | 90° Standard Barrel, 2-Hole (#10 Stud) | D4-1058FW

Description

  • Conductor Size: #4 AWG Stranded Copper

  • Configuration: 90° Bent Tongue (Right Angle)

  • Mounting Pattern: 2-Hole

  • Stud Specification: #10 Stud Size with 5/8″ (0.625″) Hole Spacing

  • Material: High-Conductivity Copper

  • Color Code: Gray (Die Index Identification)

  • Barrel Type: Standard Length

  • Application: Telecommunications, grounding bars, and tight control panels

Send email to us

Dimensions

Bolt Size#10 in
Hole Spacing (H)5/8 in
Tang Width (C)0.50 in
Barrel length (B)1.12 in
Overall length (L)1.65 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
