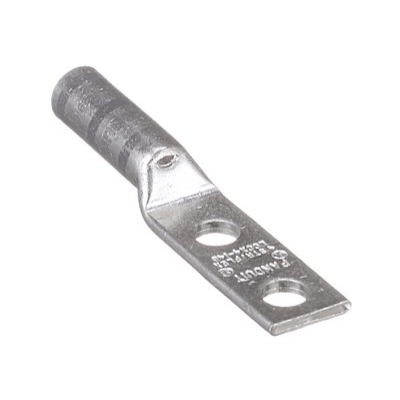

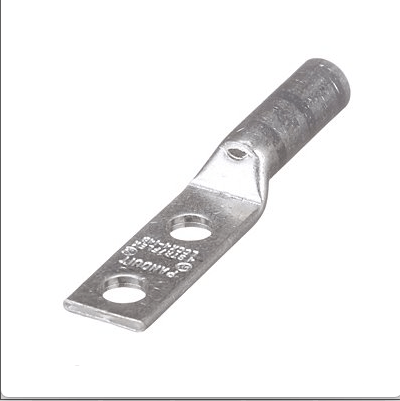

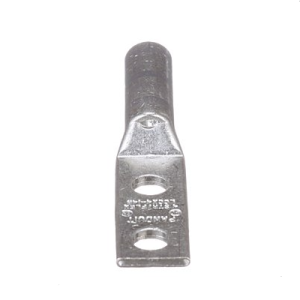

4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.
4 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 3/4" spacing, straight tongue and gray die coding.

4 AWG T2 Copper Compression Lug | Long Barrel | 2-Hole 1/4″ Stud | Gray Die | Straight Tongue

Description

Feature: Industrial-grade compression lug manufactured from high-conductivity T2 copper, featuring extended long barrel design for 4 AWG cables with dual 1/4″ stud holes at 3/4″ center spacing, straight tongue configuration and gray die coding

Advantage: Long barrel construction ensures maximum crimp surface area for superior mechanical retention, while dual-hole mounting provides exceptional vibration resistance and T2 copper material guarantees optimal electrical conductivity

Benefit: Delivers reliable power transmission in demanding applications, reduces maintenance requirements through secure connections, and enables clear circuit identification through standardized gray coloring

Data Overview

ParameterSpecification
MaterialT2 Copper (High Conductivity)
Cable Range4 AWG
Stud Size1/4″ (Dual Holes)
Hole Spacing3/4″ Center
Barrel TypeLong Barrel
Tongue TypeStraight
Mounting2-Hole Pattern
Color CodeGray Die
StandardsUL 486A, RoHS Compliant
Temperature Rating-40°C to 125°C
Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)3/4 in
Tang Width (C)0.50 in
Barrel length (B) 1.12 in
Overall length (L)2.80 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
