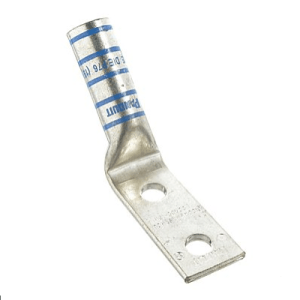

PK10 400 MCM 45° T2 Copper Compression Lug | 2-Hole 1/2″ Stud | 1-3/4″ Spacing | Blue

Description

Feature: 45-degree heavy duty compression lug manufactured from high-conductivity T2 copper, engineered specifically for 400 MCM cables with dual 1/2″ stud holes at 1-3/4″ center spacing and blue color coding

Advantage: T2 copper construction delivers exceptional current-carrying capacity and corrosion resistance, while the 45-degree angled design provides optimal balance between space efficiency and mechanical stability in high-power applications

Benefit: Ensures reliable power transmission in space-constrained high-current systems, simplifies installation in crowded electrical enclosures, and provides clear circuit identification through distinctive blue coloring

Data Overview

ParameterSpecification
MaterialT2 Copper (High Conductivity)
Cable Range400 MCM
Stud Size1/2″ (Dual Holes)
Hole Spacing1-3/4″ Center
Tongue Angle45°
Model NumberPK10
Color CodeBlue
StandardsUL 486A, RoHS Compliant
Temperature Rating-40°C to 125°C

Application Scenarios

  • Industrial power distribution systems

  • Heavy equipment electrical connections

  • High-current renewable energy installations

  • Electrical substations and switchgear
