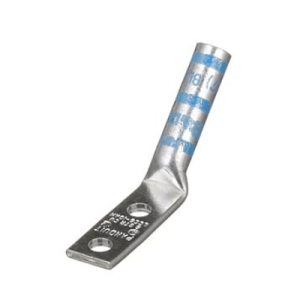

6 AWG Copper Compression Lug (Blue Die) | 45 Degree, Long Barrel, 2-Hole x #10 Stud on 3/4″ Centers

1-14W ground Lugs AWG 1 one hole 1/4 standard type Green Printed

Description

Feature: 45-degree angled compression lug manufactured from premium T2 copper, featuring extended long barrel design for 6 AWG cables with dual #10 stud holes at 3/4″ center spacing and blue die coding

Advantage: Extended barrel provides maximum crimp integrity for secure connections, while 45-degree angled design offers optimal space utilization in crowded electrical panels without compromising accessibility

Benefit: Simplifies installation in confined spaces, ensures reliable power transmission, and provides visual circuit identification through distinctive blue coloring

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	6 AWG
Stud Size	#10 (Dual Holes)
Hole Spacing	3/4″ Center
Tongue Angle	45°
Barrel Type	Long Barrel
Mounting	2-Hole Pattern
Color Code	Blue Die
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Application Scenarios

Industrial control panels with limited space
Electrical distribution equipment
Compact power systems
Applications requiring reliable 6 AWG angled connections

Send email to us

Dimensions

Bolt Size	#10 in
Hole Spacing(H)	3/4 in
Tang Width (C)	0.42 in
Barrel length (B)	0.81 in
Overall length (L)	2.24 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

General Specifications

Colour	Blue
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
