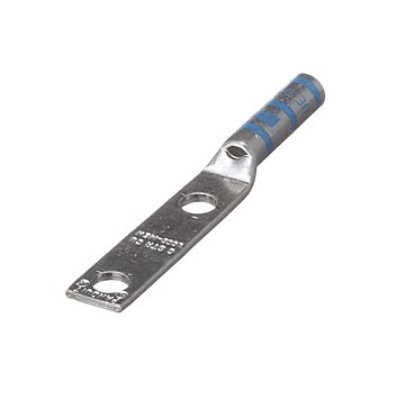

6 AWG Copper Compression Lug (Blue Die) | Long Barrel, 2-Hole x 1/4″ Stud, 1-1/4″ Spacing, Straight Tongue

6 AWG T2 Copper Compression Lug | Long Barrel | 2-Hole 1/4″ Stud | Blue Die | Straight Tongue

Description

Feature: Heavy-duty compression lug manufactured from high-conductivity T2 copper, featuring extended long barrel design for 6 AWG cables with dual 1/4″ stud holes at 1-1/4″ center spacing, straight tongue configuration and blue die coding

Advantage: Extended barrel length ensures maximum crimp integrity and superior mechanical retention, while dual-hole mounting provides exceptional vibration resistance and T2 copper construction guarantees optimal electrical conductivity with excellent corrosion resistance

Benefit: Ensures reliable power transmission in demanding environments, reduces maintenance costs through long-lasting connections, and enables quick circuit identification through distinctive blue coloring

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	6 AWG
Stud Size	1/4″ (Dual Holes)
Hole Spacing	1-1/4″ Center
Barrel Type	Long Barrel
Tongue Type	Straight
Mounting	2-Hole Pattern
Color Code	Blue Die
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Send email to us

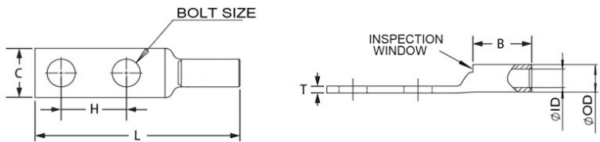

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	1-3/4 in
Tang Width (C)	0.58 in
Barrel length (B)	1.13 in
Overall length (L)	3.22 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

General Specifications

Colour	Blue
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Related Products

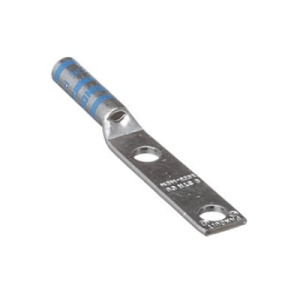

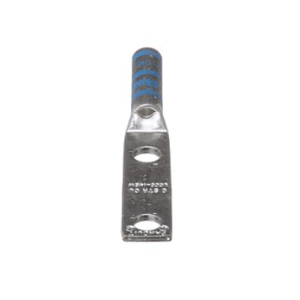

6 AWG compression lug made from T2 copper with long barrel design, dual 1/4" stud holes at 1-1/4" spacing, straight tongue and blue die coding.
