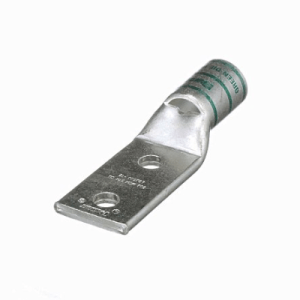

600 MCM Copper Compression Lug (Green Die) | Standard Barrel, 2-Hole x 3/8″ Stud, 1-Inch Spacing

600 MCM T2 Copper Compression Lug | Standard Barrel | 2-Hole 3/8″ Stud | Green Die | Heavy Duty

Description

Feature: Industrial-grade compression lug manufactured from high-conductivity T2 copper, designed specifically for 600 MCM cables with standard barrel profile, dual 3/8″ stud holes at 1-inch center spacing and permanent green die coding

Advantage: T2 copper construction ensures maximum current-carrying capacity with minimal voltage drop, while the optimized standard barrel profile provides perfect balance between crimp integrity and installation flexibility in confined spaces

Benefit: Delivers uncompromised performance in high-power applications, enables easier installation in tight panel configurations, and maintains permanent circuit identification through industrial-standard green coloring

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	600 MCM
Stud Size	3/8″ (Dual Holes)
Hole Spacing	1-Inch Center
Barrel Type	Standard Barrel
Color Code	Green Die
Temperature Rating	-40°C to 125°C
Standards	UL 486A, RoHS Compliant
Conductivity	≥98% IACS

Application Scenarios

Industrial power distribution systems
Electrical substations and switchgear
Heavy equipment power connections
High-current renewable energy systems

Send email to us

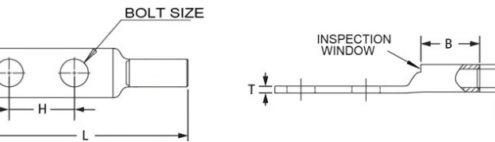

Dimensions

Bolt Size	3/8 in
Hole Spacing (H)	1 in
Tang Width (C)	1.70 in
Barrel length (B)	2.69 in
Overall length (L)	5.20 in
Inner diameter (ID)	0.92 in
Outer diameter (OD)	1.19 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
