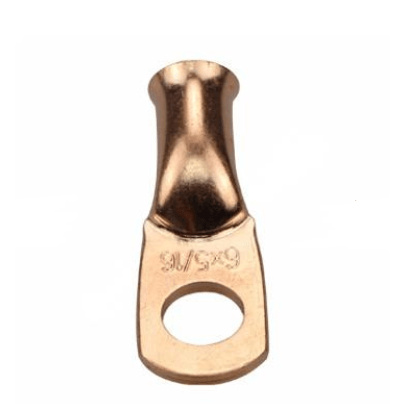

6*10 AWG copper tube terminal AWG6# 16m㎡ American Standard Terminal Lug

Description

‌Premium T2 Copper Material‌: The 6*10 AWG terminal features high-purity T2 copper, ensuring excellent electrical conductivity and corrosion resistance for long-term reliability.

‌Precision Engineering‌: Designed for AWG 6# (16mm²) cables, this American-standard terminal provides a secure, low-resistance connection in demanding electrical applications.

‌Versatile Applications‌: Ideal for industrial, automotive, and power distribution systems, this cold-pressed terminal delivers consistent performance under extreme conditions.

‌Certified Quality‌: Meets stringent industry standards for power transmission efficiency, making it a trusted choice for professional installations.

Send email to us

Dimensions

φE(mm)	5.1
ΦD(mm)	8.1
Φd(mm)	5.9
W(mm)	11.8
B(mm)	15
L(mm)	37.3

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
