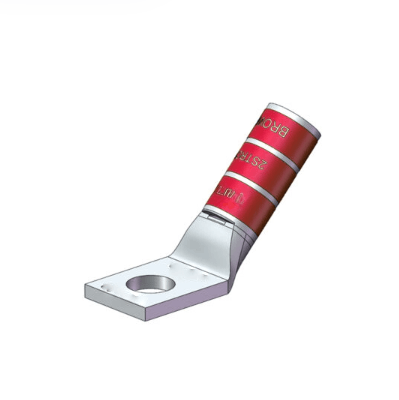

8-14HW 45°Copper Lug AWG 8# one hole1/4 standard barrel Red

Description

Precision-engineered ‌45° angled T2 copper‌ connector featuring:

‌Optimized 45° offset design‌ prevents cable stress in tight panel spaces while maintaining 8AWG (10mm²) current capacity
‌Forged seamless T2 copper barrel‌ delivers 101% IACS conductivity with 200A continuous rating (-40°C to 125°C)
‌Red oxide-resistant plating‌ ensures corrosion protection in marine/RV electrical systems
‌Laser-etched dual markings‌ (AWG/mm² + stud size) for error-proof installations

‌Certified for‌: Solar combiner boxes, EV charging stations, and UL 486C Class C high-vibration environments.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.44 in
Barrel length (B)	0.44 in
Overall length (L)	1.09 in
Inner diameter (ID)	0.18 in
Outer diameter (OD)	0.27 in

General Specifications

Colour	Red
Material	Copper
Tongue Type	Standard
Tongue Angle	45 Angle
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
