8 AWG Copper Compression Lug – 45° Angle, 2-Hole (3/8″ Stud, 1″ Spacing) Long Barrel (DL8-3801HW)

1-14W ground Lugs AWG 1 one hole 1/4 standard type Green Printed

Description

Feature: 45-degree angled compression lug precision-crafted from premium T2 copper, featuring extended long barrel configuration with dual 3/8″ stud holes at 1″ center spacing

Advantage: T2 copper material ensures superior electrical conductivity and corrosion resistance, while the optimized 45-degree angle provides perfect balance between space efficiency and installation accessibility in confined electrical enclosures

Benefit: Enables faster installation in tight spaces, guarantees reliable power transmission in demanding environments, and reduces maintenance costs through durable construction

Data Overview

Specification	Details
Material	T2 Copper (High Conductivity)
Cable Range	8 AWG
Stud Size	3/8″ (Dual Holes)
Hole Spacing	1″ Center
Tongue Angle	45°
Barrel Type	Long Barrel
Mounting	2-Hole Pattern
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Application Scenarios

Industrial control panels with space constraints
Electrical distribution systems
Machinery and equipment wiring
Renewable energy installations

Send email to us

Dimensions

Bolt Size	3/8 in
Hole Spacing(H)	1.00 in
Tang Width (C)	0.58 in
Barrel length (B)	0.81 in
Overall length (L)	2.49 in
Inner diameter (ID)	0.18 in
Outer diameter (OD)	0.27 in

General Specifications

Colour	Red
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Related Products

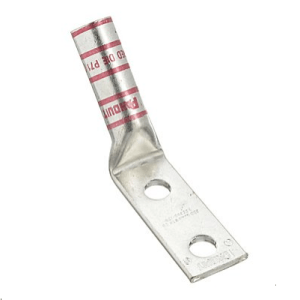

DL8-3801HW 45-degree compression lug for 8 AWG cables, manufactured from T2 copper with long barrel design and dual 3/8" stud holes at 1" spacing.
