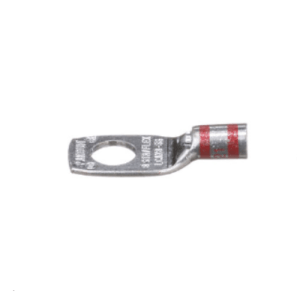

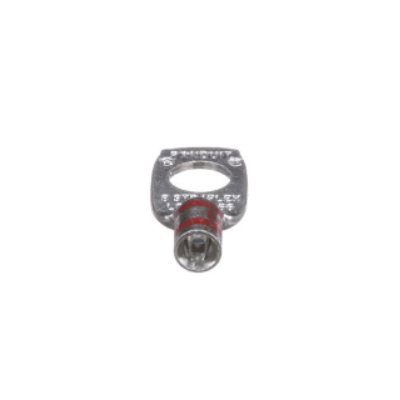

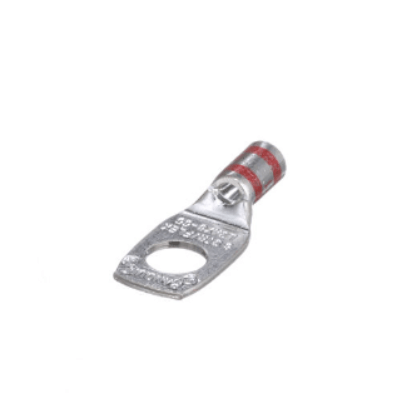

8 AWG Copper Compression Lug | Straight, 1-Hole 5/16″ Stud | Compact, ABS & UL Certified for Flex Cable

Description

Conductor Size: #8 AWG Copper (Rated for DLO, Class M Flex)
Configuration: Straight Tongue, 1-Hole Mount
Stud Size: $5/16$ Inch (7.9mm)
Design: Compact Barrel ( $0.42''$ Length)
Crimping ID: Red Color Code (Panduit P21, Burndy 49)
Certifications: UL Listed, CSA Certified, ABS Approved (Marine)
Strip Length: $1/2''$ ( $12.7\text{mm}$ )

Dimensions

Bolt Size	5/16 in
Tang Width (C)	0.52 in
Barrel length (B)	0.44 in
Overall length (L)	1.38 in
Inner diameter (ID)	0.18 in
Outer diameter (OD)	0.27 in

General Specifications

Colour	Red
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
