8*1/4 AWG American Standard Copper Tube Terminal 8AWG 10mm² Terminal Lug

Description

The ‌8*1/4 AWG‌ copper tube terminal is engineered with:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌8AWG (10mm²) capacity‌ for medium-current applications
  • ‌American-standard 1/4″ tube design‌ for compatibility with common connectors
  • ‌Cold-pressed construction‌ ensuring vibration-resistant, gas-tight connections

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring UL/CSA-compliant terminals.

Send email to us

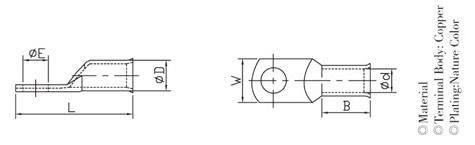

Dimensions

φE(mm)5.1
ΦD(mm)7.1
Φd(mm)4.8
W(mm)11.8
B(mm)13
L(mm)33.3

General Specifications

MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated/pickling
Inspection WindowWithout inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
