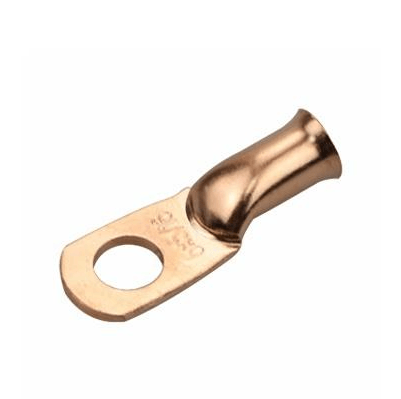

8*10 AWG American Standard Copper Tube Terminal 8 AWG 10mm² without inspection window

Description

The ‌8*10 AWG‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌8 AWG (10mm²) capacity‌ for robust current handling
  • ‌Standard barrel design‌ for secure wire connections
  • ‌Corrosion-resistant finishes‌:
    • Standard bare copper
    • Optional tin plating (5-10μm thickness)
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, power distribution, and heavy-duty electrical systems.

Send email to us

Dimensions

φE(mm)5.1
ΦD(mm)7.1
Φd(mm)4.8
W(mm)11.8
B(mm)13
L(mm)33.3

General Specifications

MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated/pickling
Inspection WindowWithout inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
