您现在的位置： / / / / / 8STR Butt Splice AWG 8# long barrel red

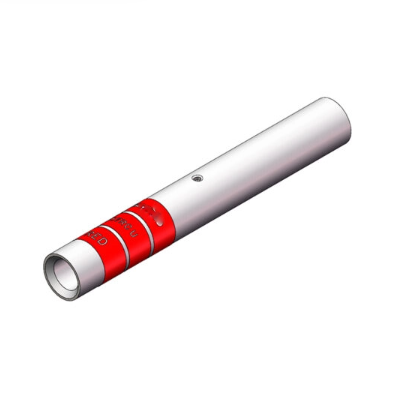

8STR Butt Splice AWG 8# long barrel red

Description

The ‌8STR Butt Splice‌ delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG8 (8.37mm²) capacity‌ for medium-current applications
  • ‌Long barrel design‌ for enhanced mechanical strength
  • ‌Red polymer sleeve‌ (safety color-coding)
  • ‌Corrosion-resistant finishes‌:
    • Standard red coating
    • Optional nickel plating (5-10μm thickness)
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for automotive wiring, industrial machinery, and electrical repairs. Compliant with NEC 310.

Send email to us

Dimensions

Overall length (L)2.00 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

Colour CodeRed
MaterialCopper
SurfaceTin-plated

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
