90 Degree Copper Compression Terminal | 4/0 AWG, Long Barrel, 2-Hole x 1/2″ Stud, 1-3/4″ Spacing (Purple)-DL4/0-1243FW

DL4/0-1243FW 90° T2 Copper Compression Terminal | 4/0 AWG | Long Barrel | 2-Hole 1/2″ Stud | Purple Code

Description

Feature: 90-degree heavy duty compression terminal manufactured from premium T2 copper, featuring extended long barrel design specifically engineered for 4/0 AWG cables with dual 1/2″ stud holes at 1-3/4″ center spacing and purple color coding

Advantage: Extended barrel length ensures maximum crimp surface area and superior mechanical retention for large conductors, while T2 copper construction delivers exceptional current-carrying capacity and the right-angle design optimizes space utilization in high-density electrical panels

Benefit: Provides reliable high-current connections in space-constrained industrial applications, reduces installation complexity in crowded enclosures, and enables immediate circuit identification through distinctive purple coloring

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	4/0 AWG
Stud Size	1/2″ (Dual Holes)
Hole Spacing	1-3/4″ Center
Tongue Angle	90°
Barrel Type	Long Barrel
Mounting	2-Hole Pattern
Color Code	Purple
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Application Scenarios

Industrial power distribution systems
Heavy equipment electrical connections
Renewable energy installations
High-current applications requiring space-optimized terminations

Send email to us

Dimensions

Bolt Size	1/2 in
Hole Spacing(H)	1-3/4 in
Tang Width (C)	1.02 in
Barrel length (B)	1.62 in
Overall length (L)	3.98 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Related Products

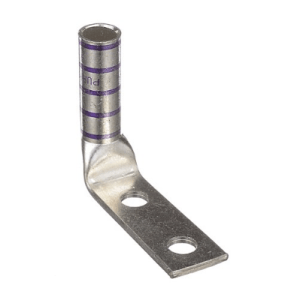

DL4/0-1243FW 90-degree heavy duty compression terminal for 4/0 AWG cables, made from T2 copper with long barrel design, dual 1/2" stud holes at 1-3/4" spacing and purple color coding.
