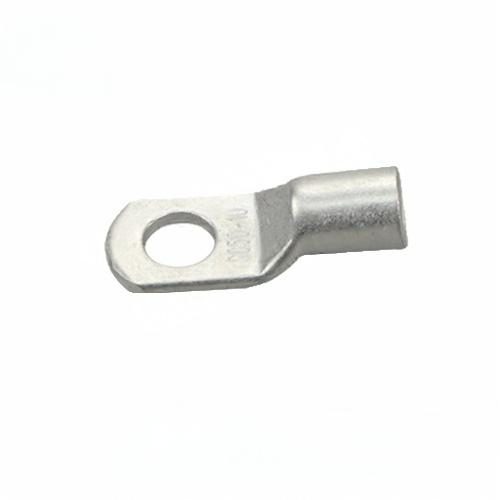

A-SC1.5-4 Copper Tube Terminal Cold-Pressed Terminal 22-16AWG 0.5-1.5mm²

Description

The ‌A-SC1.5-4‌ tube terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌22-16AWG (0.5-1.5mm²) capacity‌ for delicate to medium-current wiring
  • ‌Cold-pressed design‌ for superior mechanical strength and conductivity
  • ‌Compact construction‌ for space-constrained installations
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for automotive electronics, control panels, and compact electrical assemblies requiring reliable connections.

Send email to us

Dimensions

φE(mm)4.2
ΦD(mm)3.6
Φd(mm)1.8
W(mm)8
B(mm)5
L(mm)16

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
