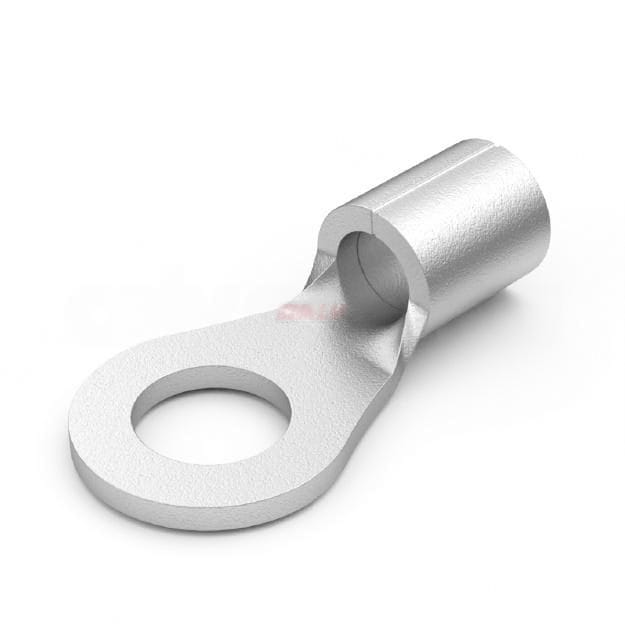

R180-8~R325-27 Series Custom Ring Terminals

Short Description

Material: Purple Copper
Content: 99.9% or more copper
Surface: Tin-plated

Description

R180-8~R325-27 series customized ring terminals support full specification customization service, made of highly conductive copper, with the advantages of low signal loss at the control side, high switching frequency, no mechanical contact jitter, no wear switching, high insulation voltage, no fear of vibration, independent of the position and long life.

Product Parameters

ITEM NO	ø d2		B	L	F	E	ø D	ø d1	t	AWG	DINmm²	Q’TY(BOX)
R 180-8	5/16	8.4 .331	38.5 1.516	69.0 2.717	24.5 0.965	28.5 1.122	28.5 1.122	21.0 0.827	3.5 0.138	300 \| 350Kcmil	185	30
R 180-10	3/8	10.5 .413										30
R 180-11	7/16	11.5 .453										30
R 180-12	1/2	13.0 .512										30
R 180-14	9/16	15.0 .591										30
R 180-16	5/8	17.0 .669										30
R 180-8M	5/16	8.4 .331										30
R 180-8M	5/16	8.4 .331		72.25 2.844								30
R 180-10M	3/8	10.5 .413										30
R 180-11M	7/16	11.5 .453										30
R 180-12M	1/2	13.0 .512										30
R 180-14M	9/16	15.0 .591										30
R 180-16M	5/8	17.0 .669										30
R 180-8L	5/16	8.4 .331		86.8 3.417	39.0 1.535							25
R 180-10L	3/8	10.5 .413										25
R 180-12L	1/2	13.0 .512										25
R 180-16L	5/8	17.0 .669										25
R 180-18	11/16	19.0 .748										25
R 180-20	3/4	21.0 .827										25
R 180-22	7/8	23.0 .906										25
R 180-24	15/16	25.0 .984										25
R 180-27	1	28.0 1.102										25
R 200-8	5/16	8.4 .331	44.0 1.732	72.0 2.835	24.5 0.965	31.5 1.24	32.5 1.28	24.0 0.945	4.0 0.157	400 \| 450Kcmil	240	20
R 200-10	3/8	10.5 .413										20
R 200-11	7/16	11.5 .453										20
R 200-12	1/2	13.0 .512										20
R 200-14	9/16	15.0 .591										20
R 200-16	5/8	17.0 .669										20
R 200-8M	5/16	8.4 .331		78.0 3.071								18
R 200-10M	3/8	10.5 .413										18
R 200-11M	7/16	11.5 .453										18
R 200-12M	1/2	13.0 .512										18
R 200-14M	9/16	15.0 .591										18
R 200-16M	5/8	17.0 .669										18
R 200-8L	5/16	8.4 .331		91.0 3.583	37.5 1.476							15
R 200-10L	3/8	10.5 .413										15
R 200-12L	1/2	13.0 .512										15
R 200-14L	9/16	15.0 .591										15
R 200-16L	5/8	17.0 .669										15
R 200-18	11/16	19.0 .748										15
R 200-20	3/4	21.0 .827										15
R 200-22	7/8	23.0 .906										15
R 200-24	15/16	25.0 .984										15
R 200-27	1	28.0 1.102										15
R 250-8	5/16	8.4 .331	50.0 1.969	73.0 2.874	24.5 0.965	32.5 1.280	34.9 1.374	26.1 1.028	4.3 0.169	500Kcmil	250	15
R 250-10	3/8	10.5 .413										15
R 250-12	1/2	13.0 .512										15
R 250-14	9/16	15.0 .591										15
R 250-16	5/8	17.0 .669										15
R 250-8M	5/16	8.4 .331		79.0 3.110								15
R 250-10M	3/8	10.5 .413										15
R 250-11M	7/16	11.5 .453										15
R 250-12M	1/2	13.0 .512										15
R 250-14M	9/16	15.0 .591										15
R 250-16M	5/8	17.0 .669										15
R 250-8L	5/16	8.4 .331		92.0 3.622	37.5 1.476							12
R 250-10L	3/8	10.5 .413										12
R 250-12L	1/2	13.0 .512										12
R 250-14L	9/16	15.0 .591										12
R 250-16L	5/8	17.0 .669										12
R 250-18	11/16	19.0 .748										12
R 250-20	3/4	21.0 .827										12
R 250-22	7/8	23.0 .906										12
R 250-24	15/16	25.0 .984										12
R 250-27	1	28.0 1.102										12
R 325-8	5/16	8.4 .331		88.0 3.465	33.5 1.319	35.5 1.398	37.0 1.457	28.0 1.102	4.5 0.177	500 \| 600Kcmil	300	12
R 325-10	3/8	10.5 .413										12
R 325-12	1/2	13.0 .512										12
R 325-14	9/16	15.0 .591										12
R 325-16	5/8	17.0 .669										12
R 325-8M	5/16	8.4 .331		94.25 3.711								12
R 325-10M	3/8	10.5 .413										12
R 325-11M	7/16	11.5 .453										12
R 325-12M	1/2	13.0 .512										12
R 325-14M	9/16	15.0 .591										12
R 325-16M	5/8	17.0 .669										12
R 325-8L	5/16	8.4 .331		105.5 4.154	45.0 1.772							12
R 325-10L	3/8	10.5 .413										12
R 325-12L	1/2	13.0 .512										12
R 325-14L	9/16	15.0 .591										12
R 325-16L	5/8	17.0 .669										12
R 325-18	11	19.0 .748										12
R 325-20	3/4	21.0 .827										12
R 325-22	7/8	23.0 .906										12
R 325-24	15/16	25.0 .984										12
R 325-27	1	28.0 1.102										12

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
