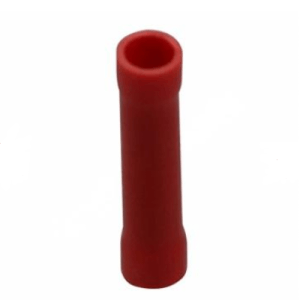

BF1.25 PCV Insulated Butt Splice TWINEm㎡ 0.57-1.25 AWG 22-16 red

Description

High-quality BF1.25 PVC insulated butt splices, compatible with 22-16AWG wires (0.57-1.25mm²), feature durable T2 copper construction for excellent conductivity and corrosion resistance. Ideal for automotive, industrial, and electrical applications.

Send email to us

Dimensions

φD(mm)	4
Φd(mm)	2
L(mm)	23
L1(mm)	15
TWINEm㎡	0.57-1.25
Color	Red

General Specifications

Material	PVC
Copper Content	≥99.9%
Tongue Angle	Straight

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
