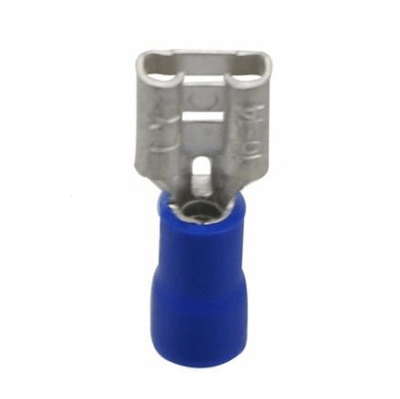

BF110-5 Female Insulated Spade Terminal 16-14AWG 1.5-2.5m㎡ Cable Lug

Description

High-quality BF110-5 female insulated spade terminals, compatible with 16-14AWG wires (1.5-2.5mm²), feature durable T2 copper construction for reliable conductivity and corrosion resistance. Ideal for automotive, industrial, and electrical applications.

Send email to us

Dimensions

φT(mm)0.5
ΦD(mm)4.2
Φd(mm)2.4
W(mm)3.2
B(mm)10
L(mm)18.5

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
