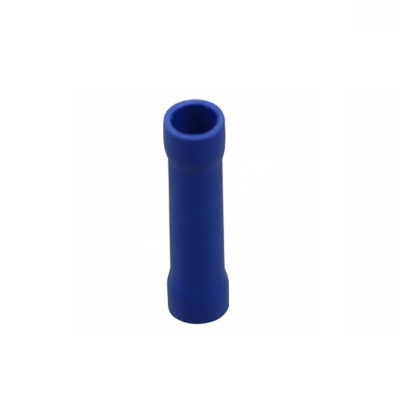

BF2 Insulated Butt Splice 16-14AWG Twine 1.25-2mm² Blue PVC Butt Connectors

BF2 Insulated Butt Splice | 16-14 AWG | 1.25-2mm² | Blue PVC | Twine Reinforced

Description

PVC insulated butt splice connector for 16-14 AWG (1.25-2mm²) wires, featuring twine reinforcement and blue color coding for secure, identifiable connections.

Product Detail
Feature: Precision-engineered barrel with twine reinforcement and blue PVC insulation
Advantage: Provides excellent mechanical strength and electrical insulation while preventing over-crimping
Benefit: Ensures reliable, long-lasting wire connections and reduces installation errors in electrical applications

Data Overview

Wire Range: 16-14 AWG (1.25-2mm²)
Insulation: PVC
Color: Blue
Reinforcement: Twine
Type: Butt Splice
Temperature: -40°C to 105°C
Standards: UL, RoHS

Application Scenarios
Automotive wiring, control panels, appliance repair, and electrical maintenance requiring secure, insulated wire connections.

Send email to us

Dimensions

φD(mm)	4.5
Φd(mm)	2.4
L(mm)	23.2
L1(mm)	15
TWINEm㎡	1.25-2.0
Color	Blue

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
