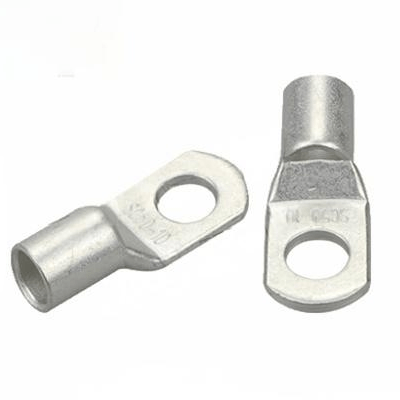

GPH1.5-3 GPH Copper Tube Terminal Tin-Plated without inspection window

Description

Premium T2 Copper Core‌: Constructed from 99.95% pure T2 copper for exceptional conductivity in high-current (1500A+) power distribution and battery bank applications.

Cold-Pressed Construction‌: Features a 70mm barrel length and 6.0mm wall thickness for secure crimping in renewable energy and heavy machinery installations.

High-Temperature Durability‌: Withstands continuous operation at 150°C, ideal for demanding industrial and automotive electrical systems.

Corrosion-Resistant Finish‌: Optional tin plating available for enhanced protection in harsh environments, including marine and offshore installations.

Certified Performance‌: Complies with UL 486A-2025 and IEC 61238-1 standards, with laser-etched sizing for accuracy.

Dimensions

φE(mm)6.5
ΦD(mm)13.8
Φd(mm)11.2
W(mm)20.4
B(mm)20
L(mm)52

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
